Compact Quick-Connect Vertical Stage, 9 mm Travel, Crossed Roller Bearings
![](https://www.thorlabs.de/Images/GuideImages/14806_XRNVerticalStage_2.jpg)
- 9 mm Vertical Travel Stage
- Integrated 2" Dovetails for Multi-Axis Construction
- Crossed-Roller Bearings for High Load Capacity and Low Angular Deviation
Front
Back
XRNV1
Vertical Translation Stage
Application Idea
XRNV1 Stage Mounted on 2" Dovetail Rail for Coarse Linear Positioning
with HRS1015-P01 Retroreflector
Mounted via XRN25-RC2 Adapter
![](../../images/loading-red.gif)
Please Wait
Specifications | |
---|---|
Bearing Type | Crossed-Roller Bearings |
Drive Mechanism | Worm-Gear-Driven Lift Screw |
Travel Range | 9.0 mm (0.35") |
Working Height Range | 44.0 mm to 53.0 mm (1.73" to 2.08") |
Adjustment per Knob Revolution | 0.25 mm (0.01") |
Maximum Drive Resolution | 10 µm (0.0004") |
Horizontal Load Capacitya | 22.2 N (5.0 lbs) |
Inverted Load Capacitya | 6.67 N (1.50 lbs) |
Angular Deviation | <250 µrad |
Straightness | <10 µm |
Backlash | <5 µm |
Spring Preload at 0 mm Travelb | 7.55 N (1.70 lbs) |
Spring Preload at 13 mm Travelb | 21.73 N (4.89 lbs) |
Dimensions (Including Base Plate) | 85.0 mm x 51.0 mm x 44.0 mmc (3.35" x 2.36" x 1.73"c) |
Weight | 0.31 kg (0.68 lbs) |
Material | Black-Anodized Aluminum |
![](https://www.thorlabs.de/images/tabimages/XRN_Vertical_Stage_Features_A1-200.jpg)
Click for Details

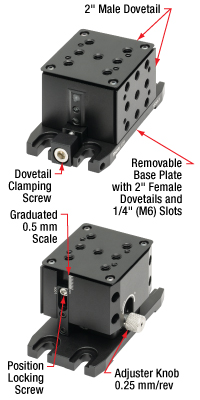

Key Features of the XRNV1(/M) Vertical Translation Stage. The top image shows the stage at its lowest position; the bottom image shows the stage fully raised.
Features
- 9 mm of Vertical Travel
- 2" Dovetails on Top and Bottom for Use with XRN Series Stages and 2" Dovetail Rail Systems
- 2" Male Dovetail on Front Plate for Use with Quick-Connect Rail Platforms
- 1/4"-20 (M6) and 6-32 (M4) Tapped Holes on Top Plate and Front
- Graduated Millimeter Scale Indicates Stage Height
- Compact Footprint: 85.0 mm x 51.0 mm (With Removable Base Plate)
- Quickly Connect Stages and Accessories Using 2" Dovetails
- See the Quick-Connect Stages Tab for Complete Line of Components
The XRNV1(/M) Vertical Translation Stage provides 9.0 mm of height adjustment for a working height range of 44.0 mm to 53.0 mm. The adjustment knob provides 0.25 mm of height adjustment per revolution and is located on the back of the stage near the base in order to keep the user's hand away from the beam path. The stage position can be locked by the side-located locking screw with a 5/64" (2 mm) hex key or balldriver. Crossed-roller steel bearings support precision motion and high load capacities, while the body is machined from cast tool and jig aluminum for high stability and minimal internal stress.
The stage includes seven 1/4"-20 (M6 x 1.0) mounting holes on the top plate and an additional nine 1/4"-20 (M6 x 1.0) mounting holes on the front vertical face. There are also four 6-32 (M4 x 0.7) tapped holes on the top and four 6-32 (M4 x 0.7) holes on the side for use with the PM3(/M) and PM4(/M) clamping arms (sold separately below). The base plate has four mounting slots for use with 1/4" (M6) cap screws. The base can be removed, exposing a Ø1/2" mounting boss on the bottom of the unit, which can be used to mount the stage on a BA2E(/M) base plate or an XRN-RB(/M) rotation adapter.
The top and bottom of the stage feature 2" dovetails for compatibility with our XRN series of quick-connect linear and rotation stages; By connecting multiple stages via these dovetails, the user can easily construct multi-axis configurations. Additional functionality is provided by our line of 2" dovetail rail components, including rails, rail carriers, a rotation adapter, and adapters for mounting on 3" dovetail components. For more information about our quick-connect construction components, see the Quick-Connect Stages tab.
Caution: Do not attempt to adjust the stage height while the locking screw is engaged. Doing so has the potential to damage the stage or cause it to perform outside of specification.
