Mini-Series Kinematic Mount for Rectangular Optics
![](https://www.thorlabs.de/Images/GuideImages/13341_MSKinRect_1.jpg)
- Kinematic Mount for 1/2" Tall Rectangular Optics
- 4-40 (M3) Mounting Holes
- Compact Footprint
MK05S
Kinematic Mount for 1/2" Rectangular Optics
Back
Front
Application Idea

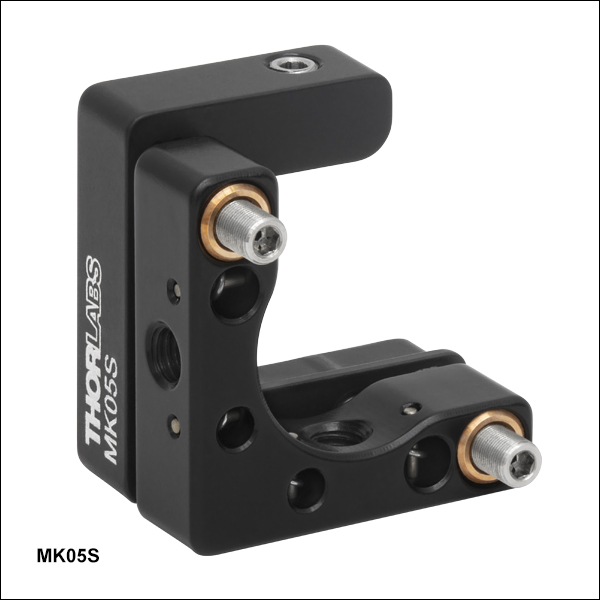

MK05S Kinematic Mount with
1/2" Square Aluminum Mirror
![](../../images/loading-red.gif)
Please Wait
Features
- Securely Mount 1/2" Tall Rectangular Optics
- Angular Range: ±4°
- Hardened Steel Inserts at Kinematic Contact Points to Reduce Wear
- Phosphor Bronze Bushings and Stainless Steel Lead Screws for Smooth Adjustment
- Fabricated from Black Anodized Aluminum
The MK05S(/M) Mini-Series Kinematic Mount holds 1/2" tall rectangular optics that are at least 2.54 mm (0.10") thick, such as metallic or dielectric mirrors and diffraction gratings. It features two kinematic adjusters and a compact 0.80" x 0.62" (20.2 mm x 15.8 mm) nominal footprint. Optics such as mirrors, diffraction gratings, and cylindrical lenses are secured using a nylon-tipped locking screw. Both the nylon-tipped setscrew and the two M2.5 x 0.20 adjuster screws accept a 0.050" (1.3 mm) hex key (not included). For ease of adjustment, we recommend using our 0.050" hex key thumbscrews, sold below. Additionally, we offer a locking collar and spanner wrench for locking the adjuster screws in a desired position or for creating a hard stop. These accessories are also available separately below.
The mount features two 4-40 (M3) mounting holes for mounting onto our Ø6 mm Mini-Series posts or Ø12 mm pedestal posts. Our Mini-Series post holders allow our Ø6 mm posts to be mounted onto our Mini-Series breadboards.
Thorlabs also offers Mini-Series Kinematic Mirror Mounts, which resemble the compact size of the MK05S(/M) and are available for mounting Ø7 mm, Ø11 mm, or Ø1/2" optics.
Posted Comments: | |
Aleksandar Sebesta
 (posted 2023-01-20 14:33:48.49) Dear Thorlabs Team,
is there also a possibility to have this mount with 3 hex adjusters, with otherwise same dimensions?
Cheers,
Aleksandar Sebesta jdelia
 (posted 2023-01-20 11:28:35.0) Thank you for contacting Thorlabs. Unfortunately you did not leave a valid email address so we are unable to discuss this with you directly as of now. However, if you would like to discuss the feasibility of this custom, we suggest contacting your local tech support team. In your case, you can reach them at Europe@thorlabs.com. |
![Back to Top Back to Top](https://www.thorlabs.de/images/arrow_Vert.gif)
![MK05S and KM05S Size Comparison](https://www.thorlabs.de/images/TabImages/Rectangular_Optic_Mounts_A3-150.jpg)
Click to Enlarge

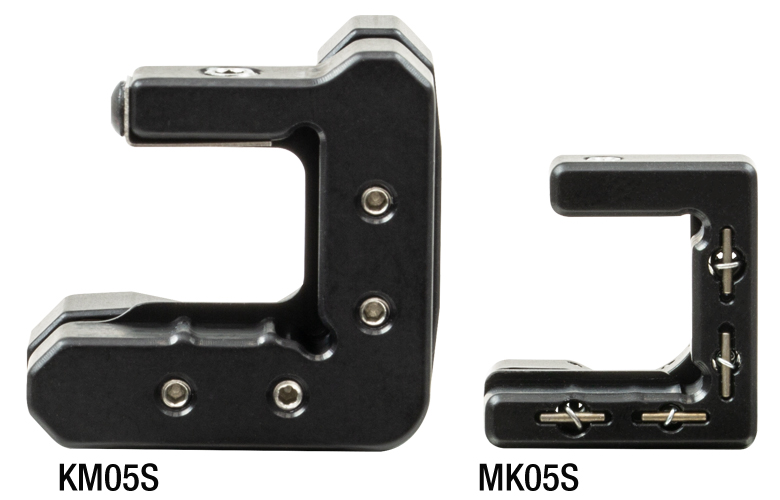

Size Comparison between Our KM05S (Left) and MK05S (Right) 1/2" Optic Kinematic Mounts
