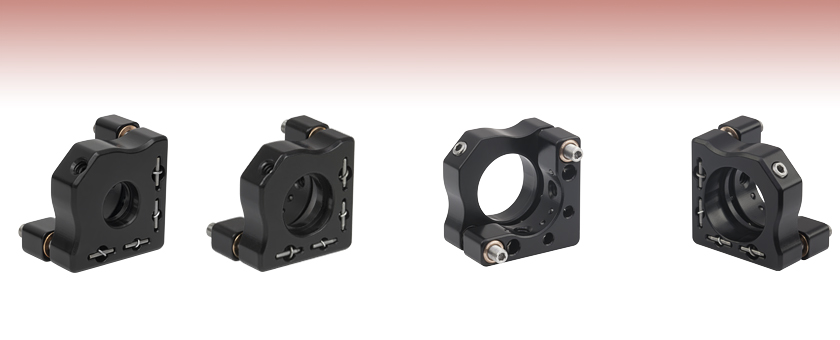

Mini-Series Kinematic Mirror Mounts with Two Adjusters


  • Kinematic Mirror Mounts for Ø7 mm, Ø10 mm, and Ø1/2" Optics
  • 4-40 (M3) Mounting Holes
  • Compact Footprint

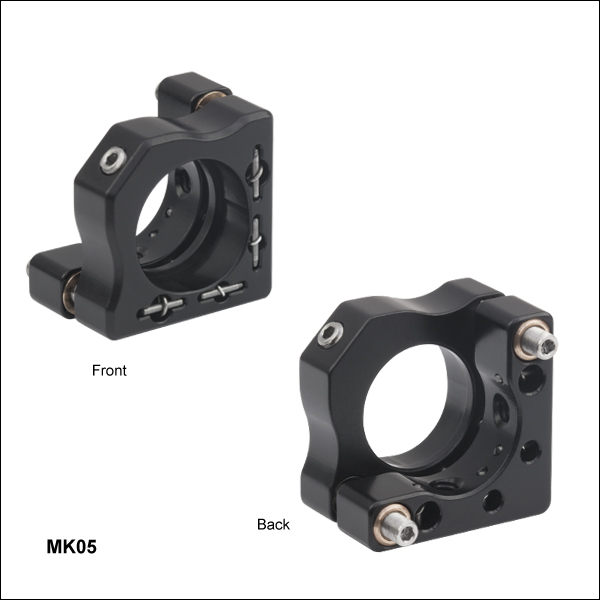

MK05

Ø1/2" Kinematic Mirror Mount, 4-40 Taps



Back

Front

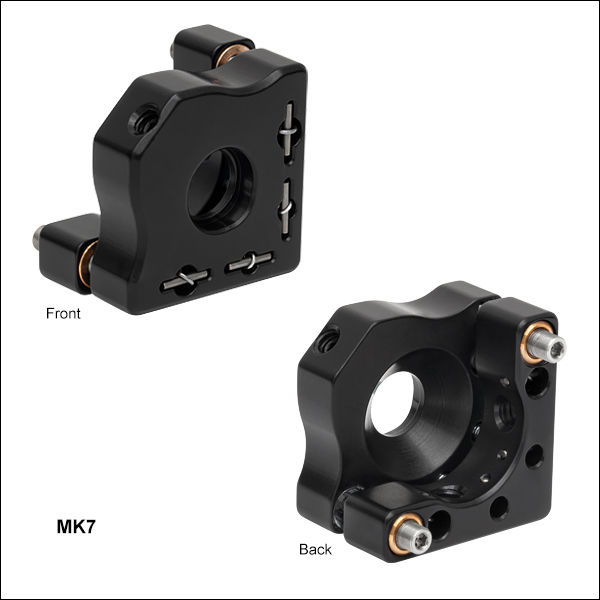

MK7

Ø7 mm Kinematic Mirror Mount, 4-40 Taps

MK10

Ø10 mm Kinematic Mirror Mount, 4-40 Taps

Related Items


Please Wait
Stop Collar Lock Nut
Click to Enlarge

A single locking collar can lock an adjuster's position with an SPW403 spanner wrench. Both are available below.
Stop Collar Lock Nut
Click to Enlarge

MK05 Mounted onto an MSB12 Breadboard Using a Mini-Series Post and Post Holder

Features

  • Securely Mount Ø7 mm, Ø10 mm, and Ø1/2" Optics
  • Angular Range: ±4°
  • Hardened Steel Inserts at Kinematic Contact Points to Reduce Wear
  • Phosphor Bronze Bushings and Stainless Steel Lead Screws for Smooth Adjustment
  • Fabricated from Black Anodized Aluminum

Thorlabs' Mini-Series Kinematic Mirror Mounts are our smallest two-adjuster mirror mounts for Ø7 mm, Ø10 mm, and Ø1/2" optics, featuring a nominal 0.79" x 0.52" (20.0 mm x 13.2 mm) footprint. The optic is secured at three points using a nylon-tipped locking screw and a double-bored mounting hole. Both the nylon-tipped setscrew and the two M2.5 x 0.20 adjuster screws accept a 0.050" (1.3 mm) hex key (not included). For ease of adjustment, we recommend using the 0.050" hex key thumbscrews sold below. Additionally, we offer a locking collar and spanner wrench for locking the adjuster screws in a desired position or for creating a hard stop.

These mounts feature two 4-40 (M3) mounting holes for either left- or right-handed orientation at 90°, enabling them to be mounted onto our Ø6 mm Mini-Series posts or Ø12 mm pedestal posts. Our Mini-Series post holders allow our Ø6 mm posts to be mounted onto our Mini-Series breadboards.

We also offer a mini-series kinematic mounts for 1/2" tall rectangular optics and Ø11 mm cylindrical components.


Posted Comments:
Ted Osier  (posted 2019-09-04 13:42:26.287)
Dear Sirs, Could we please get a MK7 in a non-anodized version for vacuum use with new part number for it. Thanks, Ted
llamb  (posted 2019-09-05 09:51:39.0)
Hi Ted, thank you for contacting Thorlabs. For future quote requests of custom products, please email techsupport@thorlabs.com. For this case, I have reached out to you directly to discuss a custom non-anodized version of the MK7.
Back to Top

Ø7 mm Mini-Series Kinematic Mirror Mount


Click to Enlarge
PF03-03-P01 7 mm Optic Mounted in an MK7 Kinematic Mirror Mount
  • Mounts Ø7 mm Optics at Least 0.04" (1.00 mm) Thick
  • Compact Nominal Footprint: 0.79" x 0.52" (20.0 mm x 13.2 mm)
  • Resolution: 13.4 mrad/rev (0.76°) per Revolution via Two M2.5 x 0.20 Precision Adjusters
  • 4-40 (M3) Mounting Holes Allow for Left- or Right-Handed Orientation

Thorlabs' MK7(/M) Mini-Series Kinematic Mirror Mount is designed to mount Ø7 mm optics in optomechanical setups where space is a premium. The optic can be adjusted using two M2.5 x 0.20 adjuster screws that accept a 0.050" (1.3 mm) hex key (not included), each having a resolution of 13.4 mrad/rev (0.76°) per revolution.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
MK7 Support Documentation
MK7Mini-Series Kinematic Mirror Mount for Ø7 mm Optics, 4-40 Taps
$102.48
Today
+1 Qty Docs Part Number - Metric Price Available
MK7/M Support Documentation
MK7/MMini-Series Kinematic Mirror Mount for Ø7 mm Optics, M3 Taps
$102.48
Today
Back to Top

Ø10 mm Mini-Series Kinematic Mirror Mount

  • Mounts Ø10 mm Optics at Least 0.04" (1.00 mm) Thick
  • Compact Nominal Footprint: 0.79" x 0.52" (20.0 mm x 13.2 mm)
  • Resolution: 13.4 mrad/rev (0.76°) per Revolution via Two M2.5 x 0.20 Precision Adjusters
  • 4-40 (M3) Mounting Holes Allow for Left- or Right-Handed Orientation

Thorlabs' MK10(/M) Mini-Series Kinematic Mirror Mount is designed to mount Ø10 mm optics in optomechanical setups where space is a premium. The optic can be adjusted using two M2.5 x 0.20 adjuster screws that accept a 0.050" (1.3 mm) hex key (not included), each having a resolution of 13.4 mrad/rev (0.76°) per revolution.

Optics compatible with the MK10(/M) include our AL108, AL108-A, AL108-B, AL108-C Ø10 mm CNC-polished aspheric lenses, as well as our ACL108U, ACL108U-A, and ACL108U-B Ø10 mm aspheric condenser lenses.

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Imperial Price Available
MK10 Support Documentation
MK10Mini-Series Kinematic Mirror Mount for Ø10 mm Optics, 4-40 Taps
$102.48
Today
+1 Qty Docs Part Number - Metric Price Available
MK10/M Support Documentation
MK10/MMini-Series Kinematic Mirror Mount for Ø10 mm Optics, M3 Taps
$102.48
3 weeks
Back to Top

Ø1/2" Mini-Series Kinematic Mirror Mount


Click to Enlarge

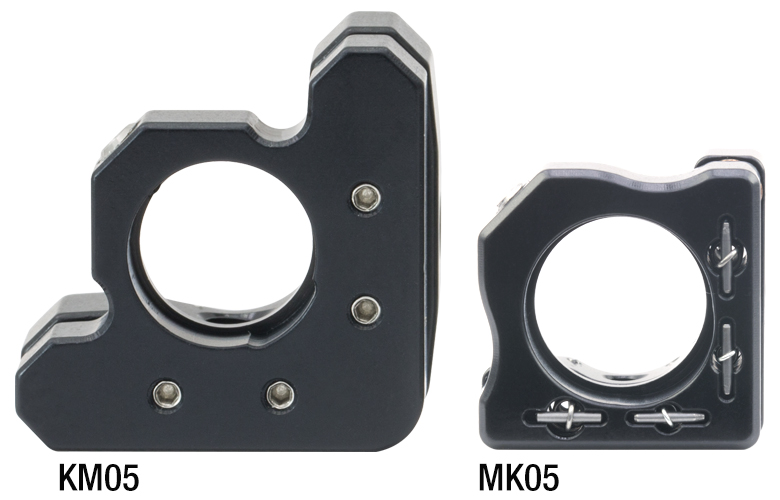

Size Comparison between Our Ø1/2" KM05 (Left) and Ø1/2" MK05 (Right) Kinematic Mirror Mounts
