OEM 780 nm and 1560 nm Femtosecond Fiber Lasers


  • Menlo Systems' figure 9® Technology
  • Highly Stable, Easy to Use, Ideal for OEM Integration
  • No Control Unit Required
  • 780 nm or 1560 nm Output

ELMO-HIGH-POWER

ELMO-780-HIGH-POWER

Related Items


Please Wait
THz Generation
Illustration of ELMO-HIGH-POWER Generating THz Pulses with 1560 nm fs Pulses

Applications

  • Amplifier Seeding
  • THz Generation and THz Physics
  • Ultrafast Spectroscopy
  • Multi-Photon Excitation
  • 2-Photon Polymerization and 3D Printing
THz Generation
Femtosecond Fiber Laser Optimized for 3D Printing on Nanoscale

Features

  • High Stability
  • Low Amplitude and Phase Noise
  • All-PM Fiber Solution
  • Single Mode-Lock State
  • Menlo Systems' figure 9® Technology
  • Laser Output in Less than 60 Seconds
  • Repetition Rate: 50 - 100 MHz
  • Small Footprint, No External Control Unit Required

Menlo Systems’ fiber-based femtosecond laser sources integrate the latest achievements in fiber technology into easy-to-use products. Menlo Systems’ unique figure 9® mode locking technology results in reproducible and long-term stable operation. Both systems are maintenance free and engineered for 24/7 operation.

The ELMO-HIGH-POWER, with its all-fiber design, guarantees excellent stability and low-noise operation. This modular unit can be upgraded to a multicolor and/or multichannel system. The fiber-coupled output includes a PM fiber patch cable up to 30 m long, making the system suitable for THz pulse generation and detection. As a seed source for fiber amplifiers, the oscillator is maintenance free, user installed, and ready to use at the press of a single button.

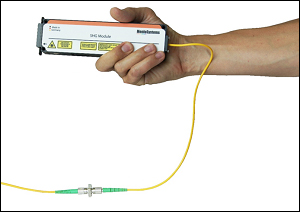

The ELMO-780-HIGH-POWER, with its modular concept and its compact frequency doubling module, is optimized for OEM integration and maximum versatility. It includes a second-harmonic generation (SHG) unit, which can be detached and handheld to minimize heat dissipation into the optical setup. Dispersion compensation is available upon request to accommodate microscope objectives and additional optical components.

Optional Packages

  • VARIO User-Defined Repetition Rate
    Factory-Set Value Selectable in the 50 - 100 MHz Range
  • MULTIBRANCH Additional Seed Ports
    Seeding of Multiple Amplifiers with Optional Subsequent Frequency Conversion to Cover Multiple Wavelengths
Jason Reeves
Jason Reeves
Menlo Systems
Feedback? Questions? Need a Quote?

Please note that these femtosecond fiber lasers are available directly from Menlo Systems.
United States
Phone: +1-973-300-4490
Email: ussales@menlosystems.com
Outside United States
Phone: +49-89-189166-0
Email: sales@menlosystems.com
Item # ELMO-780-HIGH-POWER ELMO-HIGH-POWER
Center Wavelength 780 nm ± 10 nm 1560 nm ± 30 nm
Average Output Powera >140 mW >180 mW
Pulse Widtha <100 fs <60 fs (45 fs Typ.)
Output Port Free Space Fiber-Coupled
Polarization Linear, P-Polarizedb Linear, PM Fiber
Dispersion Managementa Pigtailed SHG Module with up to 0.5 m Optical Fiber Supply Dispersion can be factory set to achieve short pulses after 0.5 - 30 m of external fiber
Repetition Ratea 100 MHz (50 - 100 MHz with VARIO)
2nd Fiber-Coupled Seed Port Yes
2nd High-Power Output Port Available with MULTIBRANCH
Operating Voltage 12 VDC / 2 Ac
Power Consumption 20 VA
Operating Temperature 15 to 35 °C
Warm-Up Time <60 s
Laser Head Dimensions / Weight 195 mm x 95 mm x 75 mm / 2.9 kg
(7.7" x 3.7" x 3.0" / 6.4 lbs)
195 mm x 95 mm x 75 mm / 2.5 kg
(7.7" x 3.7" x 3.0" / 5.5 lbs)
SHG Module Dimensions 182 mm x 95 mm x 32 mm / 1.0 kg
(7.2" x 3.7" x 1.3" / 2.2 lbs)
-
  • The handheld SHG module can also be mounted for s-polarization.
  • Please inquire with Menlo Systems for your specific combinations of average power, pulse duration, repetition rate, and external fiber length.
  • External Power Supply for 110/115/230 VAC Included

Pulsed Laser Emission: Power and Energy Calculations

Determining whether emission from a pulsed laser is compatible with a device or application can require referencing parameters that are not supplied by the laser's manufacturer. When this is the case, the necessary parameters can typically be calculated from the available information. Calculating peak pulse power, average power, pulse energy, and related parameters can be necessary to achieve desired outcomes including:

  • Protecting biological samples from harm.
  • Measuring the pulsed laser emission without damaging photodetectors and other sensors.
  • Exciting fluorescence and non-linear effects in materials.

Pulsed laser radiation parameters are illustrated in Figure 1 and described in the table. For quick reference, a list of equations is provided below. The document available for download provides this information, as well as an introduction to pulsed laser emission, an overview of relationships among the different parameters, and guidance for applying the calculations.



Equations:

Period and repetition rate are reciprocal:    and
Pulse energy calculated from average power:
Average power calculated from pulse energy:
Peak pulse power estimated from pulse energy:

Peak power and average power calculated from each other:
  and
Peak power calculated from average power and duty cycle*:
*Duty cycle () is the fraction of time during which there is laser pulse emission.
Pulsed Laser Emission Parameters
Click to Enlarge

Figure 1: Parameters used to describe pulsed laser emission are indicated in the plot (above) and described in the table (below). Pulse energy (E) is the shaded area under the pulse curve. Pulse energy is, equivalently, the area of the diagonally hashed region.

Parameter Symbol Units Description
Pulse Energy E Joules [J] A measure of one pulse's total emission, which is the only light emitted by the laser over the entire period. The pulse energy equals the shaded area, which is equivalent to the area covered by diagonal hash marks.
Period Δt  Seconds [s]  The amount of time between the start of one pulse and the start of the next.
Average Power Pavg Watts [W] The height on the optical power axis, if the energy emitted by the pulse were uniformly spread over the entire period.
Instantaneous Power P Watts [W] The optical power at a single, specific point in time.
Peak Power Ppeak Watts [W] The maximum instantaneous optical power output by the laser.
Pulse Width Seconds [s] A measure of the time between the beginning and end of the pulse, typically based on the full width half maximum (FWHM) of the pulse shape. Also called pulse duration.
Repetition Rate frep Hertz [Hz] The frequency with which pulses are emitted. Equal to the reciprocal of the period.

Example Calculation:

Is it safe to use a detector with a specified maximum peak optical input power of 75 mW to measure the following pulsed laser emission?

  • Average Power: 1 mW
  • Repetition Rate: 85 MHz
  • Pulse Width: 10 fs

The energy per pulse:

seems low, but the peak pulse power is:

It is not safe to use the detector to measure this pulsed laser emission, since the peak power of the pulses is >5 orders of magnitude higher than the detector's maximum peak optical input power.
