Purpose-Built Imaging Platforms

Thorlabs' microscopy systems combine the full benefits of a vertically integrated organization with decades of expertise to tailor virtually every component incorporated into its platforms. Our scientists and engineers draw from experience in all key disciplines to design, develop, manufacture, and support advanced imaging systems.

Our systems are designed from a clean sheet of paper to do the job intended from the beginning. Leveraging our extensive in-house design and fabrication capabilities allows us to minimize design trade-offs, develop targeted solutions to challenging problems, and customize each individual system to our customers' specifications. See below to view our imaging systems available.

Bergamo® III Multiphoton
Microscopes

Veneto® Inverted
Microscopes

Prelude® Functional Imaging Microscope

Mini2P Miniature Two-Photon Microscope

Multiphoton Mesoscope

Confocal Microscopy Systems

OCT Imaging Systems

Cerna Modular Microscopy Platform



Bergamo III Microscope
Click to Enlarge

Bergamo III Microscopy System



Bergamo III Series Multiphoton Microscopes

Recognizing that there is a need for a microscope with a modular structure that can be configured to the experiment, rather than the other way around, we set out to develop the new reference standard in multiphoton microscopy. With a selection of rigid bodies, numerous auxiliary imaging modalities, detectors, motion control, and laser beam control, the permutations of the Bergamo III Series are endless.

For additional information, please see the full Bergamo III Series presentation.



Veneto Microscope
Click to Enlarge

Veneto Inverted Microscope: Two-Photon + Widefield Configuration



Veneto Inverted Microscopes

Thorlabs’ Modular Inverted Microscopy Platform provides a turnkey solution for widefield, confocal, and multiphoton imaging. Inverted microscopes are powerful and versatile research tools that can accommodate a range of applications, such as fluorescence, in vivo, ex vivo, 3D, high-resolution, high-speed (video-rate), and live tissue imaging. This platform is available as a turnkey system that also offers users access to internal optomechanics and optics for DIY customization. We offer configurations that support widefield, darkfield, phase, Dodt, confocal, and multiphoton imaging.

For additional information, please see the full Veneto Inverted Microscopes presentation.



Prelude
Click to Enlarge

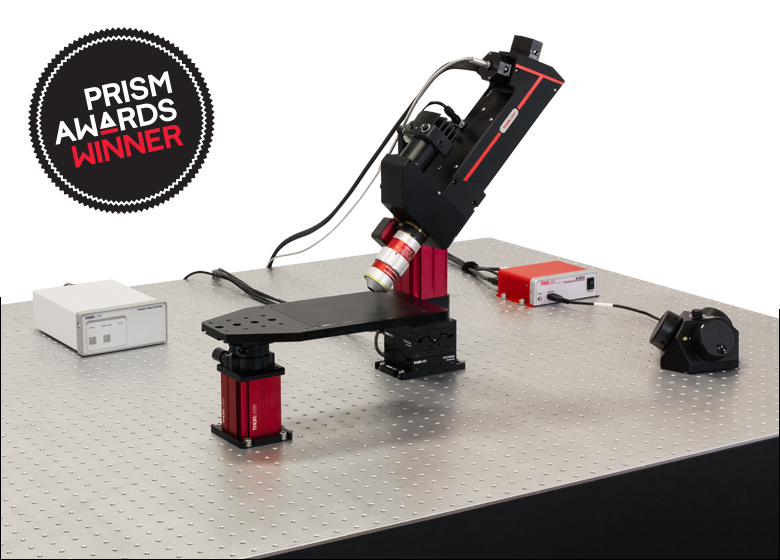

Prelude Microscope Shown with a TL10X-2P Objective Attached to a PFM450E Piezo Objective Scanner



Prelude Functional Imaging Microscope

Ushering in a new level of flexibility for functional imaging, Thorlabs has created a completely integrated two-photon microscopy system suitable for samples with demanding positioning requirements. The Prelude's compact fiber-coupled design eliminates the need for complex alignment procedures and provides a high degree of maneuverability. It includes a near-infrared 920 nm femtosecond pulsed laser and integrated filter set, making it ideally suited for two-photon fluorescence imaging of GFP. With a selection of long working distance objectives and a vibrationless remote focus, imaging with the Prelude can be done with no disturbance to your sample.

For additional information, please see the full Prelude presentation.



Bergamo II Microscope
Click to Enlarge

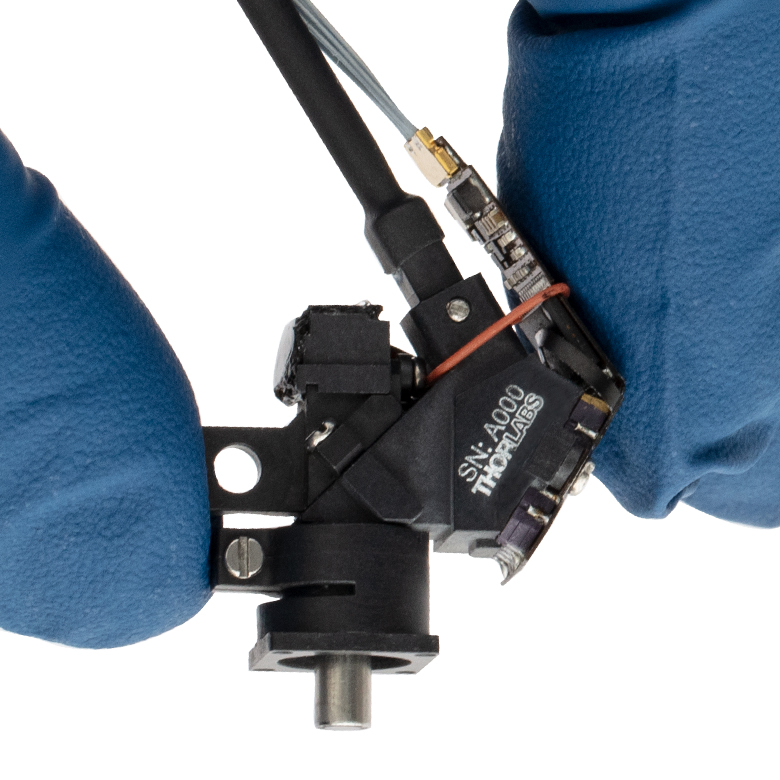

Assembled Mini2P Mounted on an
Optical Post



Mini2P Miniature Two-Photon Microscope

Thorlabs' Miniature Two-Photon Imaging System (Mini2P) is a fast, high-resolution miniscope designed for in vivo two-photon imaging of non-stationary specimens. The lightweight, head-mounted design allows for stable calcium imaging without impediment to the sample. Interchangeable objectives facilitate use with cranial windows, prisms, and GRIN lenses for imaging tissue at different depths and orientations. The Mini2P allows for hundreds of neurons to be monitored in a single FOV, while visualization of up to a thousand cells is achievable through multiplane imaging controlled through the built-in microtunable lens.

For additional information, please see the full Mini2P presentation.



Bergamo II Microscope
Click to Enlarge

The Multiphoton Mesoscope Utilizes Technology Under License with HHMI's Janelia Research Campus



Multiphoton Mesoscope

To analyze large sections of the brain operating in concert, we developed a two-photon mesoscope for rapid functional imaging over a large 5 mm x 5 mm field of view (FOV). Scan over the entire FOV or rapidly image multiple spatially separated regions. The mesoscope enables in vivo awake-specimen neural studies at sub-cellular resolution with near-video imaging frame rates.

For additional information, please see the full Multiphoton Mesoscope presentation.



Confocal Microscope
Click to Enlarge

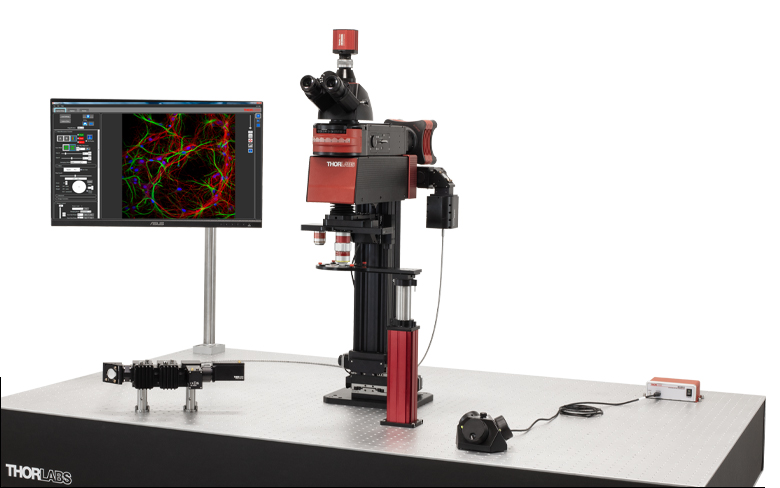

Veneto Inverted Microscope: Confocal + Widefield Configuration



Confocal Microscopy Systems & Components

Thorlabs' Confocal Microscopy offerings include complete systems for laser-scanned fluorescence or reflected light microscopy and an assortment of component products for DIY construction or custom applications. Our systems are designed to be compatible with our Cerna modular microscope components, allowing them to be easily upgraded for additional functionality.

To view all of our confocal options, please see the Confocal Microscopy presentation.



Ganymede OCT System
Click to Enlarge

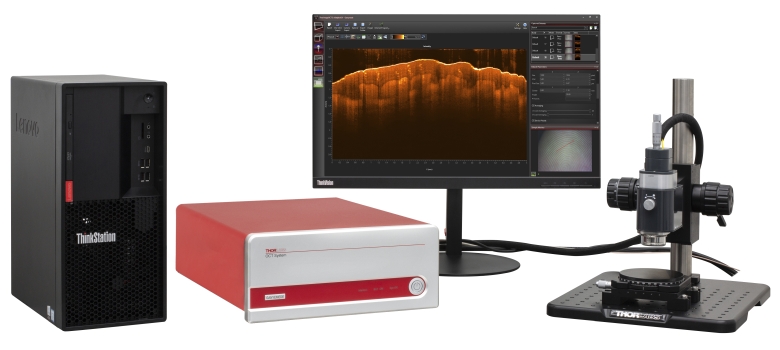

Ganymede™ Spectral Domain OCT Imaging System



Optical Coherence Tomography (OCT) Imaging Systems

Thorlabs offers a range of OCT imaging systems for various applications, including in vivo, vascular, ophthalmologic, and other biomedical imaging, as well as non-destructive testing (NDT), industrial inspection, and quality control. Our modular approach to OCT design provides a high degree of flexibility for optimizing your system to meet the unique needs of your application. Whether you are interested in a preconfigured system, or you prefer to select each component individually, please contact us. We are happy to assist you as you explore available options.

For additional information on our OCT imaging systems, please click here.



Cerna
Click to Enlarge

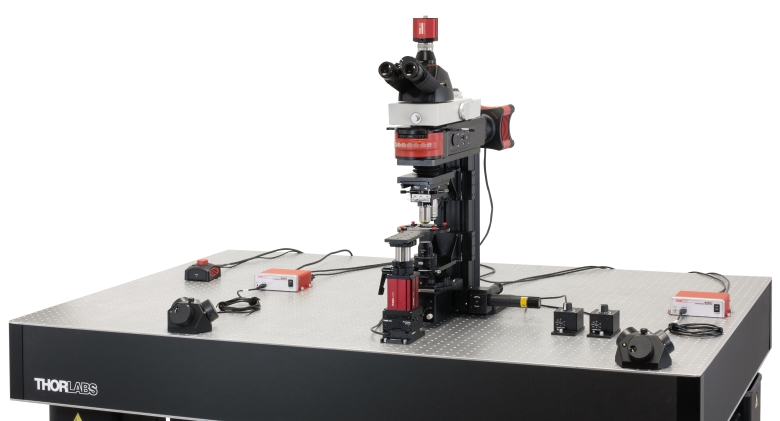

Cerna DIY Microscope Configured for Widefield Imaging



Cerna Modular Microscopy Platform

The Cerna Series is Thorlabs' easily adjustable, DIY microscopy platform for diverse experimental requirements, including cellular and developmental biology, electrophysiology, optogenetics, and machine inspection. Its versatile, expandable, and accessible design is fully compatible with Thorlabs-manufactured and user-supplied accessories. Cerna microscopes are available preconfigured or can be custom built using our diverse selection of microscope components. Preconfigured Cerna-based systems are also available for simple imaging processes.

For additional information, please see the full Cerna Series presentation.

Images Above From Top Left to Bottom Right:

  • Two-photon image of neurons expressing Thy1-YFP in a cleared region of a mouse hippocampus. (Courtesy of the 2017 Imaging Structure and Function in the Nervous System Course at Cold Spring Harbor Laboratory, Cold Spring Harbor, NY.)
  • Wild-type mouse brain section tagged with DAPI (405 nm), Alexa 488 anti-S100B, Alexa 555 anti-Neurofilament, and Alexa 633 anti-GFAP. (Sample Courtesy of Lynne Holtzclaw, NIH/NICHD/MIC.)
  • Z-stack of a GFP-labeled mouse brain section taken with a Prelude Functional Imaging Microscope. Neurons are color-coded by depth.
  • Two-photon calcium activity of a mouse medial entorhinal cortex imaged with a Mini2P. (Taken from Large-scale two-photon calcium imaging in freely moving mice.)
  • Illustration depicting Mesoscope's ability to capture multiple brain regions simultaneously. The black circle represents a Ø5 mm FOV. (Taken from A Large Field of View Two-Photon Mesoscope with Subcellular Resolution for In Vivo Imaging and used here under a Creative Commons Attribution license.)
  • Stitched image of a complete Drosophila fly head, using a 40X objective on a Thorlabs Confocal System.
  • Sectioned 3D Image of a Zebrafish taken with a Thorlabs Telesto® OCT System
  • Image of bovine pulmonary artery endothelial cells, acquired using a Cerna Microscope. (Courtesy of the Lab of Dr. Peter Stys, University of Calgary.)

Thorlabs recognizes that each imaging application has unique requirements.
If you have any feedback, questions, or need a quotation, please contact ImagingSales@thorlabs.com or call (703) 651-1700.

In Vivo Deep Tissue Imaging

Deep tissue imaging is a hallmark of multiphoton microscopy. The Bergamo® III Series' ultrasensitive detector module utilizes full-field-of-view, non-descanned GaAsP PMT detectors to maximize the collection of photons scattered deep within a sample. This efficient design allows morphological features deep within a sample to be reconstructed without having to excise tissue.

The image to the left shows an XZ projection of the primary somatosensory cortex in an 8-week-old mouse expressing thy1-YFP (H line), with a sample depth in excess of 1.0 mm. The excitation wavelength was 960 nm and the data was taken with a Nikon Apo LWD 25X objective with NA 1.10. The data set is courtesy of Dr. Hajime Hirase and Katsuya Ozawa, RIKEN Brain Science Institute, Wako, Japan.

Developmental Biology

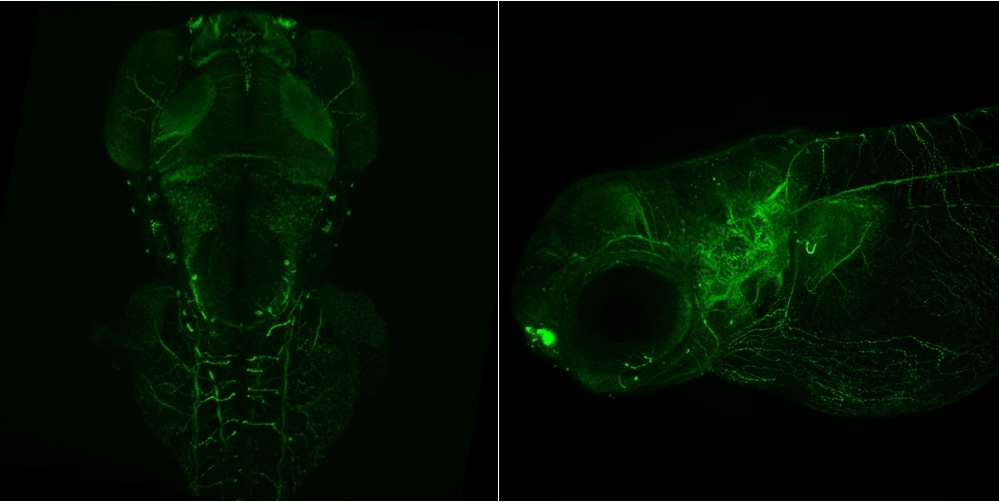

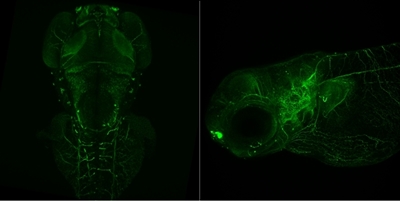

Maximum projection (dorsal and lateral, respectively) of zebrafish embryos, 48 hrs post-fertilization, showing developing neurons. Neurons are labeled with Alexa 488 against acetylated tubulin.

These images were taken using Thorlabs' confocal systems. The fluorophore was excited using a 488 nm laser and imaged with an Olympus 20X 1.0 NA water dipping lens. The data set is courtesy of Aminah Giousoh and Dr. Robert Bryson-Richardson, School of Biological Sciences, Monash University, Victoria, Australia.


Merged Image
Click to Enlarge

Merged Image

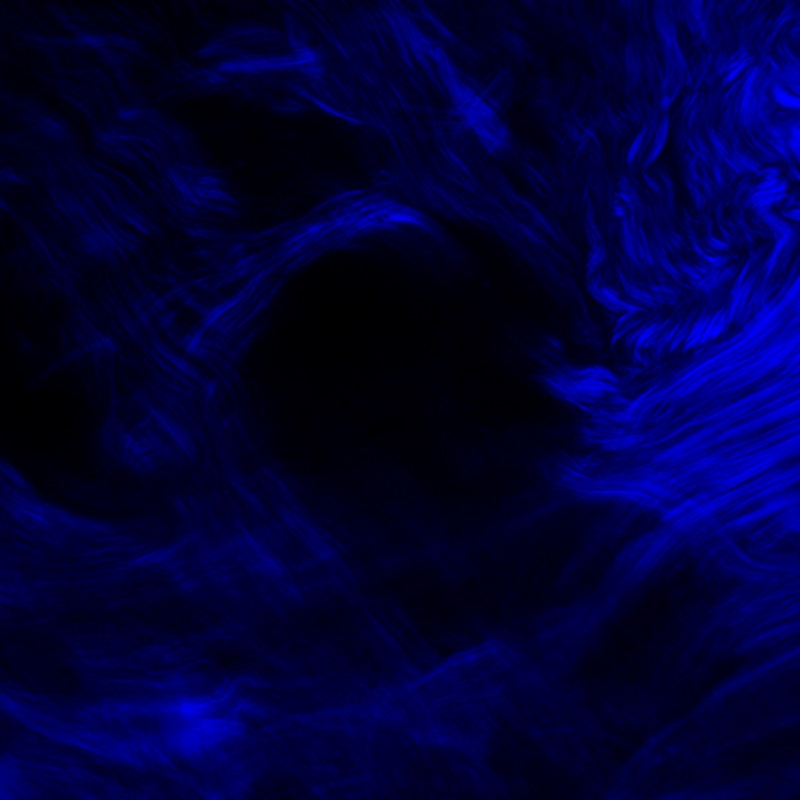

Structural Insight with Nonlinear Imaging

Although fluorescent proteins can overcome the limitations of thick or in vivo samples, where it is not always easy for fluorophores to penetrate, their use is not always desired. Nonlinear microscopy, of which two-photon fluorescence is a part, offers several complementary contrast mechanisms for visualizing structure. Coherent Anti-Stokes Raman Scattering (CARS), Second Harmonic Generation (two-photon fluorescence), and Third Harmonic Generation (three-photon fluorescence) are nonlinear imaging techniques that offer contrast that is the direct result of the interaction of the laser with the structure of interest. Under specific conditions, this allows the generation of an observable signal without the need for fluorophores.

The figure to the right shows an image made by combining CARS, SHG, and Sum Frequency Generation (SFG) signals, while the figures below shows the individual signals from each of these imaging modalities. These images were taken using a Thorlabs multiphoton microscope.

High-Resolution Imaging
Click to Enlarge

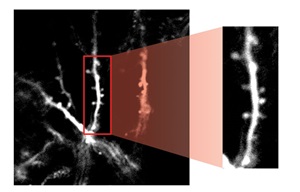

Dendritic Spines Expressing tdTomato

High-Resolution Imaging

Expanded view of dendritic spines from neurons in the mouse visual cortex expressing tdTomato.

In this image, taken with a Thorlabs multiphoton microscope, the excitation wavelength was 1040 nm, and an Olympus 60X objective with NA 1.0 was used. This image is courtesy of Dr. Tobias Rose, Max Planck Institute for Neurobiology, Martinsreid, Germany.

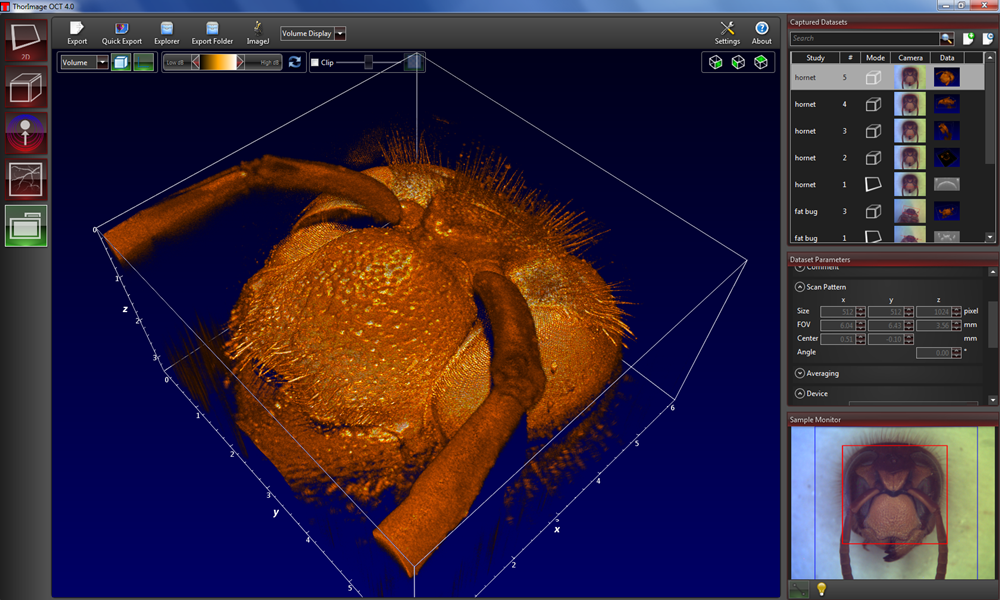

OCT Scan Control Screen Shot
Click to Enlarge

Image of a Wasp Cadaver in Volume Rendering Mode

Deep 3D Volumetric Imaging

An image of a wasp cadaver. The optical video image of the sample can be seen in the bottom right corner.

This image was taken with Thorlabs' Telesto® Series Spectral Domain OCT System. The excitation wavelength was 1300 nm.

Thorlabs recognizes that each imaging application has unique requirements.
If you have any feedback, questions, or need a quotation, please contact ImagingSales@thorlabs.com or call (703) 651-1700.

Deep Insights



In Vivo Functional Neural Imaging of Large Volumes

Large FOV imaging at high spatiotemporal resolution is a necessary requirement for correlating neural activity of large brain volumes. This movie demonstrates the firing of neurons expressing GCaMP6f in behaving mice running on a spherical treadmill. The low magnification movie shows activity across multiple brain areas, including the somatosensory, parietal, and motor areas, at 4.3 Hz across a 6.3 mm x 5.4 mm FOV. The four non-contiguous regions were imaged at 9.6 Hz with 600 μm x 600 μm FOV, and fluorescence signals from individual neurons were sampled to cross-correlate their activity.

In these image sets, taken with the Multiphoton Mesoscope, the excitation wavelength was 970 nm. The data set is courtesy of Nicholas James Sofroniew, Daniel Flickinger, Jonathan King, and Karel Svoboda; Janelia Research Campus and Vidrio Technologies, Virginia, USA (video taken from https://elifesciences.org/content/5/e14472/article-data and used here under a Creative Commons Attribution license).

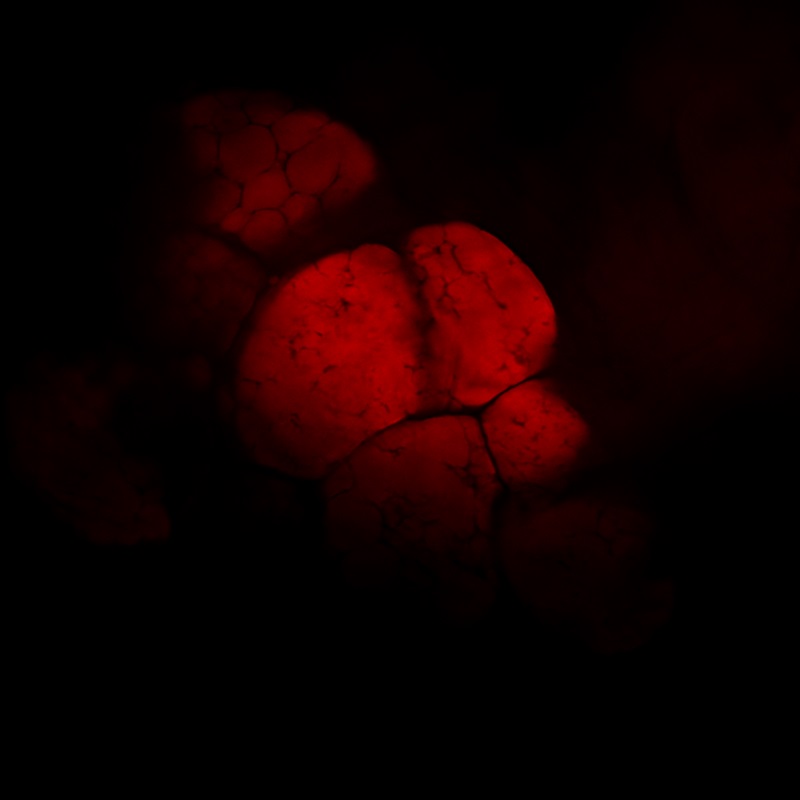

Intravital Imaging

The ability to image regions within an organ of a living animal (and not just very thin tissue, like mesentery tissue) represents a major advancement in intravital microscopy. In this movie, blood perfusion can be monitored. Blood is labeled with a tail vein injection of FITC-Dextran containing red fluorescent microspheres. The microspheres can be tracked to indicate blood velocity. Red blood cells are also visible as dark shadows within the green vessels.

In these images, taken with a Thorlabs multiphoton microscope, the excitation wavelength was 780 nm and an Olympus XLUMPLFLN 20X objective with NA 1.0 was used. The preparation is courtesy of Dr. Simon Rhodes, IUPUI School of Medicine, Indianapolis, Indiana.

Deep Brain Imaging

Deep tissue imaging is a hallmark of multiphoton microscopy. The Bergamo® III Series' ultrasensitive detector module utilizes full-field-of-view, non-descanned GaAsP PMT detectors to maximize the collection of photons scattered deep within a sample. This efficient design allows morphological features deep within a sample to be reconstructed without having to excise tissue.

The images shown above represent an XZ projection of the primary somatosensory cortex in an 8-week-old mouse expressing thy1-YFP (H line), with a sample depth in excess of 1.0 mm. The excitation wavelength was 960 nm and the data was taken with a Nikon Apo LWD 25X objective with NA 1.10. The data set is courtesy of Dr. Hajime Hirase and Katsuya Ozawa, RIKEN Brain Science Institute, Wako, Japan.



Confocal Reflectance Microscopy

Not all samples can be labeled with an exogenous contrast agent. Confocal reflectance microscopy allows for optical sectioning imaging by observing reflected laser light. This movie represents a Z-stack of a peachworm.

These images were taken with a Thorlabs confocal microscope. The excitation wavelength was 488 nm and the data was taken with an Olympus UPlanFl 20X objective with NA 0.50.

Thorlabs recognizes that each imaging application has unique requirements.
If you have any feedback, questions, or need a quotation, please contact ImagingSales@thorlabs.com or call (703) 651-1700.

To schedule an in-person or virtual demo appointment, please email ImagingSales@thorlabs.com.

Showroom Icon
Contact Us
China Demo Room
Click to Enlarge

China Demo Room

Try Our Microscopes In Person or Virtually

Thorlabs' sales engineers and field service staff are based out of nine offices across four continents. We look forward to helping you determine the best imaging system to meet your specific experimental needs. Our customers are attempting to solve biology's most important problems; these endeavors require matching systems that drive industry standards for ease of use, reliability, and raw capability.

Thorlabs' worldwide network allows us to operate demo rooms in a number of locations where you can see our systems in action. We welcome the opportunity to work with you in person or virtually. A demo can be scheduled at any of our showrooms or virtually by contacting ImagingSales@thorlabs.com.
