Products Home / Motorized Stages / Long-Travel Motorized Goniometer with Integrated Controller, Stepper MotorLong-Travel Motorized Goniometer with Integrated Controller, Stepper Motor
- ±30° Pure Rotational Motion About a Fixed Axis 30 mm Above the Stage
- Integrated Stepper Motor and Controller
- Closed-Loop Operation with ±150 µrad Accuracy
GNM1
Single-Axis Motorized Goniometer,
30 mm to Point of Rotation
ORIC® PDR1 Rotation Stage Mounted on
GNM1 Stage Shown at -30° Position
Please Wait
| Key Specsa | |
|---|---|
| Distance to Axis of Rotationb |
30.0 mm (1.18") |
| Rotation | ±30° |
| Speed | 0.005 - 25 °/s |
| Accuracy | ±150 µrad |
| Centered Load Capacity | 20 N / 2.03 kg (4.47 lbs) |
| Max Torque | 0.5 N•m |
| Moving Platform Size | 50.0 mm x 40.0 mm (1.97" x 1.57") |
| Mounting Holes & Compatible Stagesc |
4-40 - PDR1 Rotation Stage 2-56 (M2) - PDR1C Rotation Stage 8-32 (M4) - PD1 & PDX1 20 mm Stages 00-90 (M1.2) - PD2 & PDX2 5 mm Stages |
| Dimensions (W x D x H)d |
97.0 mm x 82.4 mm x 42.7 mm (3.82" x 3.24" x 1.68") |
Click for Details
Moving World Mounting Options
Features
- Pure Rotational Motion About a Fixed Virtual Axis
- Integrated Stepper Motor & Controller
- Remote Control via Kinesis Software & Manual Control Using Side Buttons
- 5 V TTL Input and Output Trigger Ports
- 2° Graduation Markings on Side
- Compact 3.82" x 3.24" (97.0 mm x 82.4 mm) Footprint
- Manual and Motorized ±8°/±5° Goniometer Stages Also Available

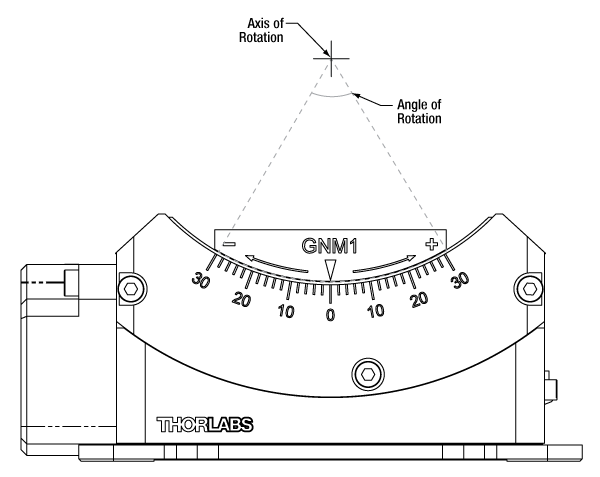

The GNM1(/M) motorized goniometer offers unobstructed, pure rotational motion about its axis of rotation over a ±30° range, 30 mm above the moving platform surface (see image below). It features an integrated microstepping motor, optical encoder, and controller designed for remote operation, as well as jog buttons on the side for manual actuation. Input and output triggers enable external triggering using 5 V TTL signals.
Click to Enlarge
Motorized Goniometer Diagram
The stage is compatible with our Kinesis® software package, which can be downloaded here. Please see the Kinesis Software tab for more information. A CABCUL72 locking USB Type-C cable is included for remote connections, as well a KPS201 15 VDC power supply and two CA3272 MMCX-to-BNC input and output trigger cables. CA3439 MMCX-to-SMA cables are available separately.

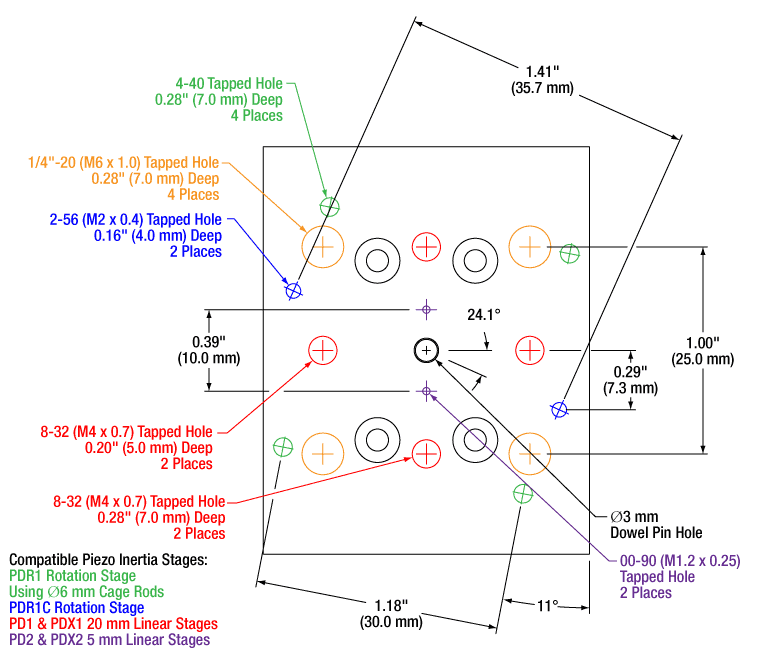

The GNM1(/M) stage provides an array of mounting holes for compatibility with ORIC piezo inertia rotation and translation (5 mm and 20 mm) stages as well as general optomech; click the diagram above for details and compatible stages. The base of the stage features three 1/4" (M6) mounting bores that are compatible with imperial and metric hole patterns. Dowel pin holes on the moving platform and base of the stage enable precise positioning using the included dowel pins.
An individualized test report is included with each stage to provide an overview of measured performance; click here for a sample report. Testing data can be obtained using the serial number on the stage via the product page links below.
| Item # | GNM1(/M) |
|---|---|
| Stage Specifications | |
| Distance from Top Surface to Axis of Rotation (H) |
30.00 mm (1.181") ± 0.01 mm |
| Distance from Bottom Surface to Axis of Rotation |
70.00 mm (2.756") ± 0.01 mm |
| Platform Size | 40 mm x 50 mm (1.57" x 1.97") |
| Centered Load Capacity (P) | 20 N / 2.03 kg (4.47 lbs) |
| Off-Center Load (Q) | ≤ 20 / (1 + D/40) N (D = Cantilever Dist. in mm) |
| Max Torque (My) | 0.5 N•m |
| Travel | ±30° |
| Speed Range | 0.005 - 25 °/s |
| Max Acceleration (2 kg Load) | 25 °/s2 |
| Bidirectional Repeatability | ±100 µrad |
| Home Location Repeatability | ±100 µrad |
| Min Repeatable Incremental Movementa | 90 µrad |
| Position Angle Accuracy (A) | ±150 µrad |
| Yaw Angular Deviationb | 400 µrad |
| Roll Angular Deviationc | 400 µrad |
| Radius of Confusion (R)d | <40 µm Max |
| Motor Specifications | |
| Motor Type | Stepper with Microsteps |
| Motor Drive Voltage | ±15 V |
| Max Motor Drive Current | <150 mA |
| Motion Control Algorithm | Exponential Approach Algorithm |
| Quadrature Encoder Resolution | 0.1 µm |
| Velocity Profile | Trapezoidal |
| Voltage | 15 V Regulated DC |
| Current | 500 mA (Peak) |
| General Specifications | |
| Dimensions (W x D x H) at Mid Travel |
97.0 mm x 82.4 mm x 42.7 mm (3.82" x 3.24" x 1.68") |
| Mass (Without Cables) | 0.45 kg (0.99 lbs) |
Specification Details
Centered Load Capacity

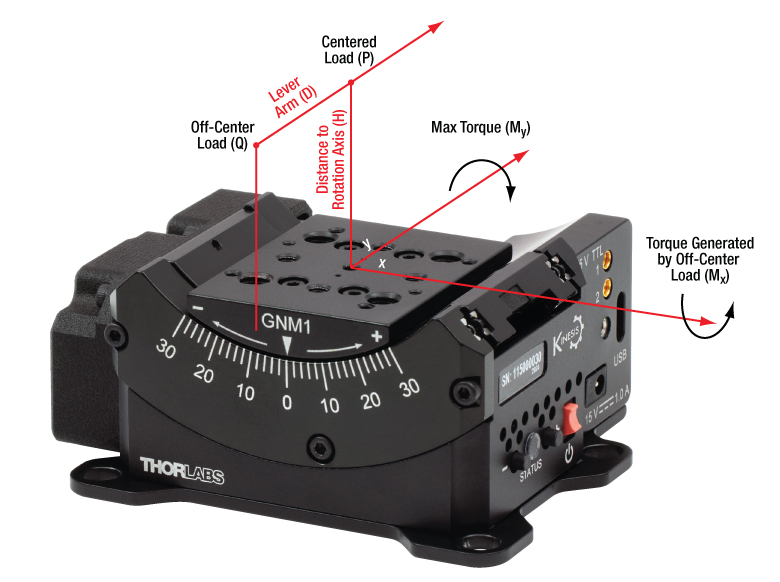

- Centered Load capacity is specified for a load with a center of mass located on the rotation axis and above the top plate's center (P).
- If the load is displaced along the rotation axis, then it generates Mx torque and should be decreased according to the formula: Q≤P/(1+D/k) (N). P is the max centered load capacity of the stage in N and D is the lever arm distance in mm. The coefficient “k” depends on the stage size; for the GNM1 stage, the load should be less than 20/(1+D/40) Newtons.
- If the load is moved out of the rotation axis, it generates My torque, which is limited by the Max Torque parameter. My torque should not exceed Max Torque during the whole travel range.
Click to Enlarge
Load Capacity Illustration
Yaw & Roll Deviation
Click to Enlarge
Sample Yaw & Roll Deviation Measurements
Click to Enlarge
Yaw & Roll Deviation Illustration

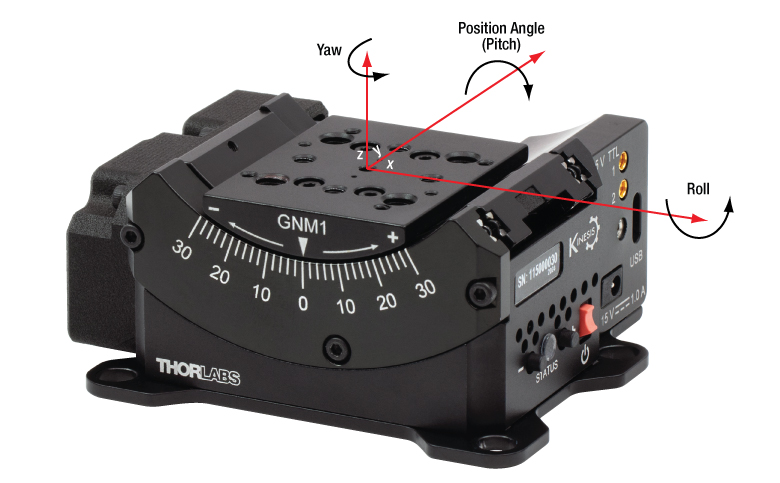

- Z axis is specified as the line through the center of the top plate and perpendicular to the axis of rotation.
- Yaw is the rotation angle of the top plate around the Z axis, assuming the homing position is zero.
- Roll is the rotation angle of the top plate around the X axis, assuming the homing position is zero.
- The yaw and roll deviations are calculated as the difference between maximum and minimum values.

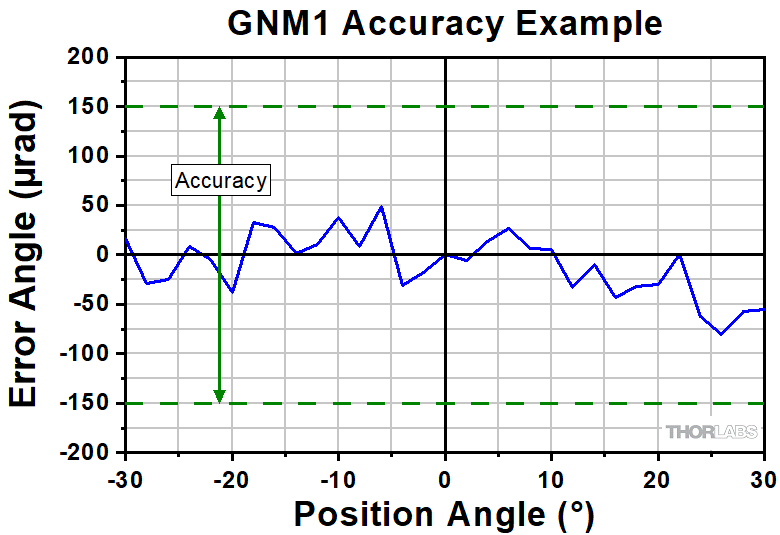

Accuracy
- Accuracy refers to a maximum positioning error.
- The position angle is calculated as the angle between the projections to the XZ plane of the normal vectors to the top plate surface in the current and homed positions.
Click to Enlarge
Sample Accuracy Measurements
Radius of Confusion
Click to Enlarge
Radius of Confusion Illustration

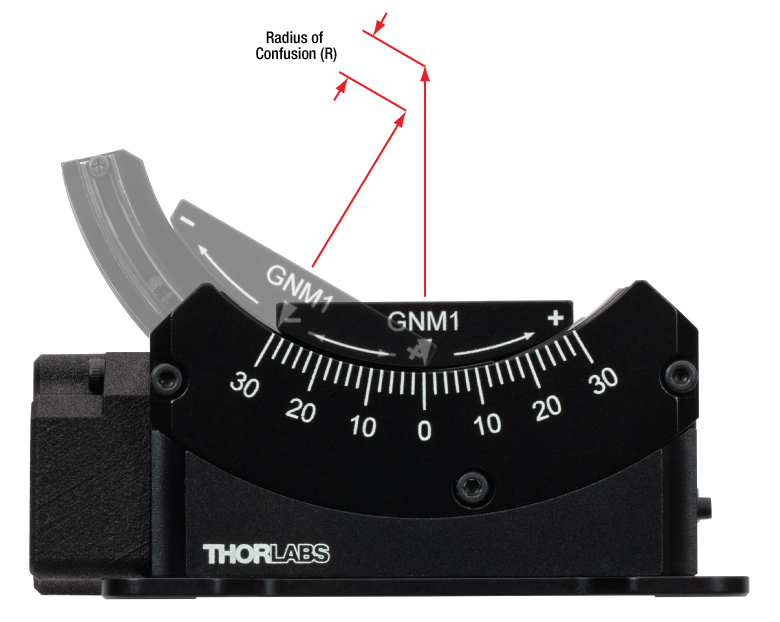

- Radius of confusion refers to the amount of deviation shown by a fixed point that is securely attached to the top plate and positioned along a rotational axis in a central homing position above the center of the top plate.
- It is calculated as the maximum distance between the calculated points during rotation and the one at the homed position.
Click to Enlarge

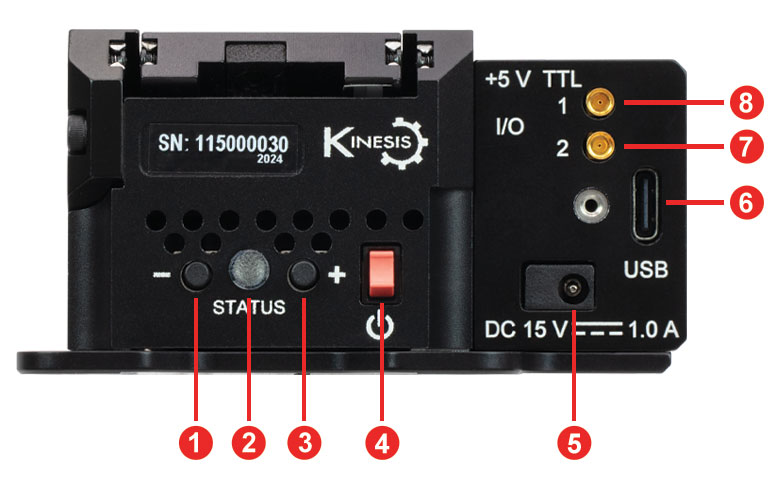

GNM1(/M) Side Panel
| Side Panel | |
|---|---|
| Callout | Description |
| 1 | Reverse Jog Button |
| 2 | Status LED |
| 3 | Forward Jog Button |
| 4 | Power Switch |
| 5 | Power Supply Connector |
| 6 | USB Type-C Connectora |
| 7 | Input Connector, MMCX Socket, 5 V TTLb |
| 8 | Output Connector, MMCX Socket, 5 V TTLb |
Click to Enlarge

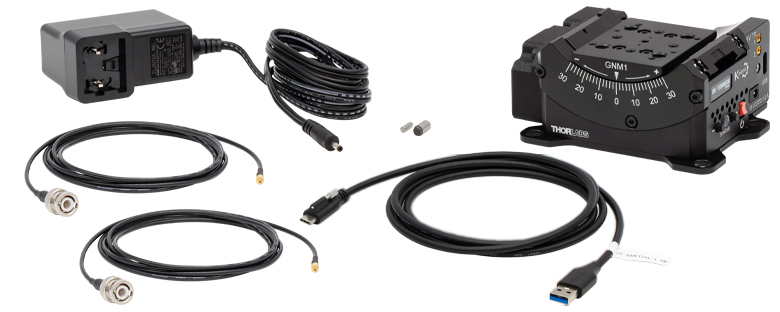

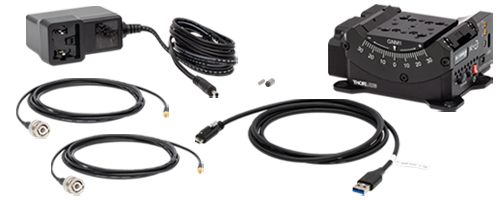

GNM1(/M) Stage Contents
Shipping List
- Goniometer Stage
- KPS201 Power Supply, 15 VDC, 2.4 A
- Two CA3272 MMCX Male to BNC Male Cables, 72" (1.8 m) Long
- CABCUL72 USB 3.0 Type-A to Type-C Cable with Locking Screw, 72" (1.8 m) Long
- Ø3 mm x 10 mm Dowel Pin, m6 Tolerance, Hardened Steel
- Ø5 mm x 10 mm Dowel Pin, m6 Tolerance, Hardened Steel
- Individualized Test Report
Software
Kinesis Version 1.14.50
The Kinesis Software Package, which includes a GUI for control of Thorlabs' Kinesis system controllers.
Also Available:
- Communications Protocol
Kinesis GUI Screen
Thorlabs offers the Kinesis® software package to drive our wide range of motion controllers. The software can be used to control devices in the Kinesis family, which covers a wide variety of motion controllers ranging from small, low-powered, single-channel drivers (such as the K-Cubes™) to high-power, multi-channel benchtop units and modular 19" rack nanopositioning systems (the MMR60x Rack System).
The Kinesis Software features .NET controls which can be used by 3rd party developers working in the latest C#, Visual Basic, LabVIEW™, or any .NET compatible languages to create custom applications. Low-level DLL libraries are included for applications not expected to use the .NET framework and APIs are included with each install. A Central Sequence Manager supports integration and synchronization of all Thorlabs motion control hardware.
By providing this common software platform, Thorlabs has ensured that users can mix and match any of our motion control devices in a single application, while only having to learn a single set of software tools. In this way, it is perfectly feasible to combine any of the controllers from single-axis to multi-axis systems and control all from a single, PC-based unified software interface.
The software package allows two methods of usage: graphical user interface (GUI) utilities for direct interaction with and control of the controllers 'out of the box', and a set of programming interfaces that allow custom-integrated positioning and alignment solutions to be easily programmed in the development language of choice.
Legacy Software
Select products are still capable of running the legacy APT™ software package. Information on software compatibility can be found in the product documentation (
), and additional details about the APT software can be found here.
Thorlabs' Kinesis® software features new .NET controls which can be used by third-party developers working in the latest C#, Visual Basic, LabVIEW™, or any .NET compatible languages to create custom applications.
C#
This programming language is designed to allow multiple programming paradigms, or languages, to be used, thus allowing for complex problems to be solved in an easy or efficient manner. It encompasses typing, imperative, declarative, functional, generic, object-oriented, and component-oriented programming. By providing functionality with this common software platform, Thorlabs has ensured that users can easily mix and match any of the Kinesis controllers in a single application, while only having to learn a single set of software tools. In this way, it is perfectly feasible to combine any of the controllers from the low-powered, single-axis to the high-powered, multi-axis systems and control all from a single, PC-based unified software interface.
The Kinesis System Software allows two methods of usage: graphical user interface (GUI) utilities for direct interaction and control of the controllers 'out of the box', and a set of programming interfaces that allow custom-integrated positioning and alignment solutions to be easily programmed in the development language of choice.
For a collection of example projects that can be compiled and run to demonstrate the different ways in which developers can build on the Kinesis motion control libraries, click on the links below. Please note that a separate integrated development environment (IDE) (e.g., Microsoft Visual Studio) will be required to execute the Quick Start examples. The C# example projects can be executed using the included .NET controls in the Kinesis software package (see the Kinesis Software tab for details).
 |
Click Here for the Kinesis with C# Quick Start Guide Click Here for C# Example Projects Click Here for Quick Start Device Control Examples |
|
LabVIEW
LabVIEW can be used to communicate with any Kinesis- or APT-based controller via .NET controls. In LabVIEW, you build a user interface, known as a front panel, with a set of tools and objects and then add code using graphical representations of functions to control the front panel objects. The LabVIEW tutorial, provided below, provides some information on using the .NET controls to create control GUIs for Kinesis- and APT-driven devices within LabVIEW. It includes an overview with basic information about using controllers in LabVIEW and explains the setup procedure that needs to be completed before using a LabVIEW GUI to operate a device.
 |
Click Here to View the LabVIEW Guide Click Here to View the Kinesis with LabVIEW Overview Page |
|
